The ALPHA-filter elements are horizontally mounted in "clusters” from the clean gas side. Several clusters are installed on top of each other and generate a "filter block”. Several filter blocks are arranged adjacent to each other, which makes a filter unit. Depending on the available space filter units can be arranged as a "double row”, if an access from two sides is possible. Standard ALPHA unit module can handle air flows from 6,000 m3/h – 18,000 m3/h.

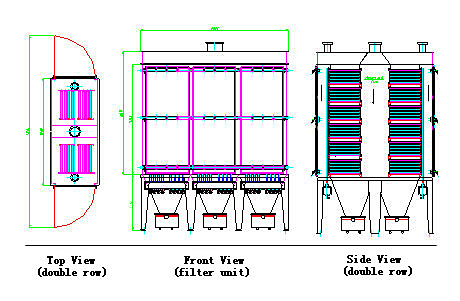

Design of the filter system:
Sample for appr. 17.000 m3/h with a face velocity of ca. 1,3 m3/m2/min.
